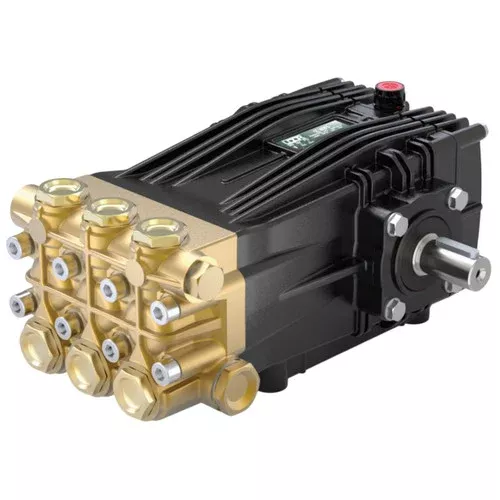

Udor CD 8.5/30 S Plunger Pump W/ 24mm Keyed Solid Shaft, 8.5 GPM, 2900 PSI

Description

Udor CD 8.5/30 S Plunger Pump W/ 24mm Keyed Solid Shaft, 8.5 GPM, 2900 PSI

The Udor CD 8.5/30 S Plunger Pump is a standard-duty, high-performance pump designed for industrial and commercial applications requiring consistent pressure and durability. Delivering a maximum flow of 8.5 GPM and a pressure rating of 2900 PSI, this pump operates at 1750 RPM with a 24mm keyed solid shaft for reliable power transmission. Built with a heavy-duty brass manifold, solid ceramic plungers, and stainless steel check valves, it ensures long-lasting performance under demanding conditions. Ideal for pressure cleaning, sewer jetting, vehicle wash systems, hydro-excavation, and street cleaning, the CD Series combines strength, precision, and efficiency for superior results.

Industries: Pressure Washing, Truck Wash, Car Wash, Food Processing, In Plant Cleaning Systems, Graffiti Removal, Fire Fighting, Sewer Jetting, Hydro Excavating, Reverse Osmosis, Desalination Process, De-Mucking, Misting/Fogging/Cooling, Air Conditioning Cleaning, Ground and Sod Aeration, Machine Tool Coolant, Tree Debarking, Directional Boring and Drilling, Hydrostatic Testing, Soft Wash

Features

• Solid Ceramic Plungers: Provides durability and resistance to wear.
• Heavy-Duty Brass Manifold: External and internal bracing for maximum strength.
• Stainless Steel Check Valves: Ensures reliable operation and corrosion resistance.
• High-Strength Components: Aluminum alloy connecting rods for extended service life.
• Enhanced Valve Design: Large diameter brass valve caps with increased thread depth.

Specifications

• Bar: 200
• Crankshaft Stroke/Code: 17.0mm/X
• GPM: 8.5
• Inlet: 3/4 in. BSP-F Inlet
• Lubrication: 34.5 oz Udor Lube
• Max Fluid Temp: 160°F
• Max Flow: 8.5 GPM / 32.2 L/min
• Max Pressure: 2900 PSI
• Model: CD 8.5/30 S
• Outlet: 3/8 in. BSP-F
• Plunger Dia.: 22mm
• Power: 16.5 EBHP
• Power Requirement: 16.5 HP Electric
• Rated Pump Speed: 1750 RPM
• Seal Kit: 6061.10
• Shaft: 24mm Keyed Solid Shaft
• Valve Kit: 6061.03
