Teardrop 48 x 120 Storage Rack Upright – 1

Description

IU1848120

3″ x 1-5/8″ Upright Frame

FOB: Oregon Warehouse

Stock color: Vista Green

Combine Beams and Frames for maximum discount!Many Other Sizes are Available!We can design and build racking systems to fit your operation. Custom height or depth frames available.

• Quick shipment available on the common sizes.
• Adjusts on 2″ centers.

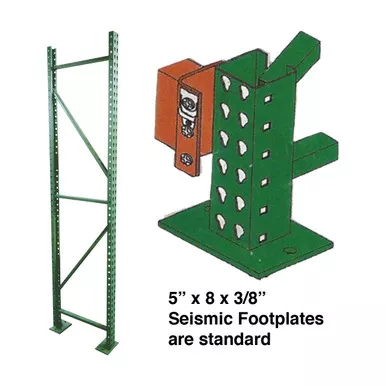

• 5″x8″x3/8″ seismic plates are standard with 4 holes.
• We build and design racking systems to your operation.
• Note: Upright frame capacities are based on 42″ maximum vertical beam spacing.
• Surcharges May Apply

How to Select Your Pallet Rack1. Frame CapacityAdd total weight of all pallets for each bay (exclude pallets on floor).2. HeightMeasure all verticals including height of pallet, pallet load and beam height, add 4″ clearance between top of load and bottom of beam above. Top beam should be a minimum of 6″ less than maximum lifting height of your forklift.3. DepthPallet should overhang frame by 3″ front and back (48″ pallet, use 42″ deep frame). Deduct 6″ from pallet depth. Pallets need to be in good condition.4. WidthMeasure width of pallet, add a minimum of 3″ pallet-to-frame clearance and 4″ between pallets to determine correct beam length. Each pair of beams must support weight of pallets per level. Add-on sections require only one additional frame and required number of beams.
