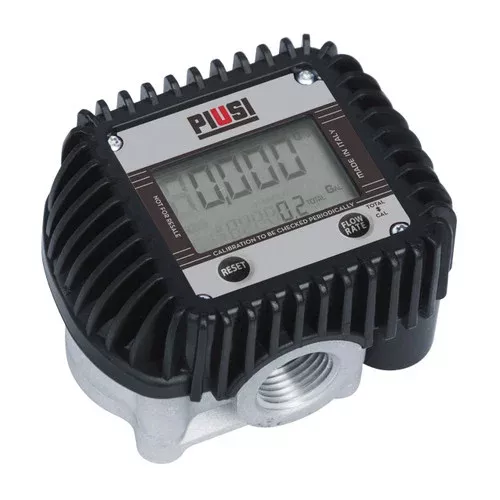

PIUSI K400 1/2 in. NPT 7.9 GPM Digital Flow Meter

Description

PIUSI K400 1/2 in. NPT 7.9 GPM Digital Flow Meter

The PIUSI K400 Digital Flow Meter is designed for accurate, non-retail dispensing of low, medium, and high viscosity fluids. Featuring a durable aluminum body with acetal resin oval gears, this meter provides precise fluid measurement across a wide range of applications.

The K400 is easy to install and calibrate, making it a great choice for both new installations and system upgrades. The digital display provides clear, quick readings of dispensed fluids and the meter can be mounted in-line on a hose or directly on a nozzle for added flexibility. Pulse output capability allows for simple integration with fuel management systems, offering efficient monitoring and control.

This meter is suitable for fluids with viscosities ranging from 10 to 2000 cSt, making it a versatile solution for industrial, commercial, and fleet fueling operations.

Features

• Standard AAA-size batteries
• Bursting pressure: 2,900 psi
• Working pressure: 1000 psi
• Suitable for diesel and oils
• Aluminum body, Rubber protector
• Oval gear in acetal resin
• 5 figure partial display(Resettable), 7 figure totalalizer
• Flow rates up to 7.9 GPM
• Loss of pressure <0.5 bar
• Flow rate up to 30 l/min
• Accuracy +/- 0,5 %
• Repeatability: 0.2 %
• Viscosity 2 – 2000 cSt
• K400 Pulser: 379 p/gal
• Inlet/outlet: 1/2″
