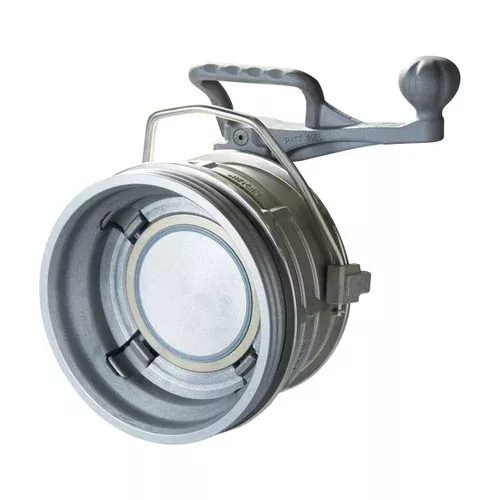

OPW LYNX API Coupler – GFLT FKM Seals

Description

OPW LYNX Series API Coupler Description

Upgrade loading couplers to the OPW LYNX Series,OPW’s next-generation bottom-loading coupler designed to replace the Liquip 700 Series and OPW 1004D4. Built for maximum reliability, the LYNX delivers superior performance, enhanced safety, and fast, tool-free maintenance.

Key features include a patented U-pin design for quick disassembly, minimal product leakage, and durable stainless steel construction, all in a lightweight 19 lb body. These couplers are ideal for fuel and chemical transfer applications.

Backed by a 5-year warranty on all metal components, the LYNX Series is the smart choice for safe, efficient bottom loading.

For Ultra-low temperature performance, see model OPWLYNX852ULT

Note: 5 year warranty on all metal components only.

Supersedes: Liquip 700 Series and OPW 1004D4 API Couplers. For questions, call 800-333-3331

Features

• Direct replacement for Liquip 700 Series and OPW 1004D4 API couplers
• Fast, in-field tool-free disassembly with revolutionary U-pin system of main seals, on or off the arm
• Enhanced safety and leak prevention
• Automatic Latching
• U-pin is secured when the TTMA flange is fastened to prevent the pin from coming out in service
• A range of seals available for use to suit a range of applications
• Four, “true interlocking” stainless steel latches ensure secure coupling and maximum safety
• High quality components including a stainless steel collar and hard anodized aluminum body for increased service durability and life
• Minimal product leakage during disconnect increases site safety
• Ergonomic operating handle and carry loop results in less physical strain on users during use
• 5 year warranty on all metal components only – seals not included

Specifications

• Handle Length: 150mm
• Other seals available on request
• Operating Temp: Viton B70 is –4°F to +176°F (-20°C to +80°C); Viton GFLT is –40°F to +140°F (-40°C to +60°C)
• Dismantling: Removal of one u-pin enables the shaft assembly and main poppet to be withdrawn
• Mounting: By industry standard, 100mm (4”) TTMA flange
