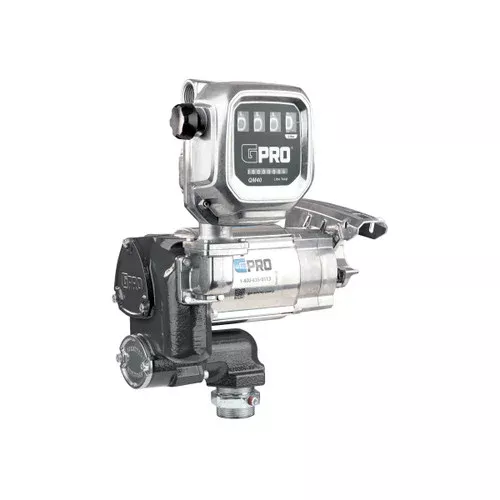

GPI GPRO 35 GPM 120V Fuel Transfer Pump, Pump Only, Fuel Meter (Liter)

Description

GPI’s newly released GPRO V35 series of AC fuel transfer pumps (GPI17205002) that are designed for the toughest heavy-duty, high-volume tasks. With a flow rate of 35 GPM, the V35 series transfer pumps are designed to have long-lasting performance in demanding environments at the highest level. Each transfer pump is engineered with corrosion-resistant components and a weatherproof design, allowing for optimal performance. It is also adaptable with the installation options available, including dual outlet adapters, secure fit in a range of fueling setups. Come shop the JME site for the best selection of AC fuel transfer pumps.

Features

• Professional-Grade fueling for heavy-duty equipment at 35 GPM
• The corrosion-resistant fuel transfer pump stands up to harsh environments after rounds of weatherproofing and testing
• Durable enough to withstand the daily extreme applications on your job site
• Field replaceable switch and capacitor without compromising weather resistance or agency approvals
• Easy access to fuel strainer: five minutes to clean strainer without removing the pump from the tank
• Overhaul kits and replacement parts available to extend the service life of the pump
• Has a vertical nozzle orientation

Specifications

• Voltage: 120V AC
• Flow Rate: 35 GPM
• Mounting Type: Direct Mount, 2 in. MNPT
• Motor RPM: 1690
• Duty Cycle: 30 min.
• Inlet Size: 1.25 in.FNPT
• Outlet Size: 1 in. FNPT
• Pump Housing Material: Powder Coated Cast Iron, Aluminum
• Suction Lift: 15 ft.
• Discharge Lift: 18 ft.
• Operating Temperature: -20°F to 125°F
• Pressure: 24 PSI
• Dimensions: 14 in. x 18 in. x 17.6 in.
• Shipping Dimensions: 22.18 in. x 15.5 in. x 19.12 in.
• Shipping Weight: 70 lbs.
• Fluid Compatibility: Gasoline up to E15, Diesel Fuel up to B20, Kerosene, Avgas (100LL), Jet A, Jet A-1

Downloads

Specifications Sheet (PDF Download)

Product Literature (PDF Download)
